Mindman Products
Since inception, Mindman has invested in efficient professionals and facilities of production. We use automated manufacturing and scientific management to keep costs low and performances high. And that allows our products to give our clients a global competitive edge.
PREPARATION UNIT

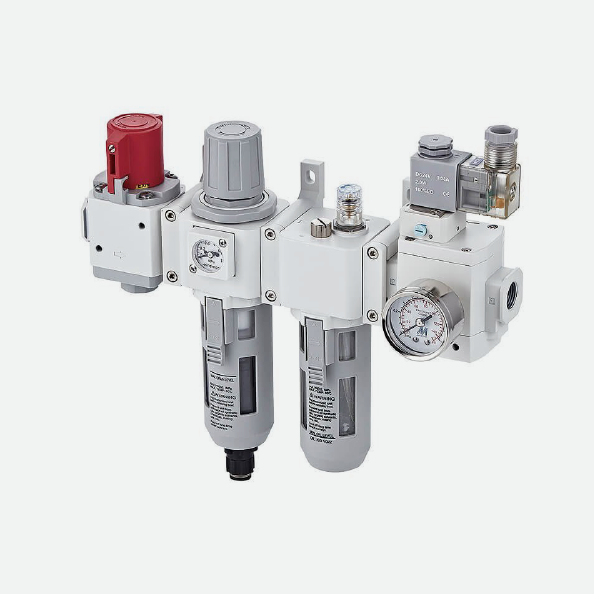

MACP series
Port size: 1/4", 3/8", 1/2", 3/4", 1"
Filter element: Standard: 5μm Option: 40μm
Max. Operating pressure: 0.05~1 MPa.
Set pressure range: 0.05~1.5 MPa.

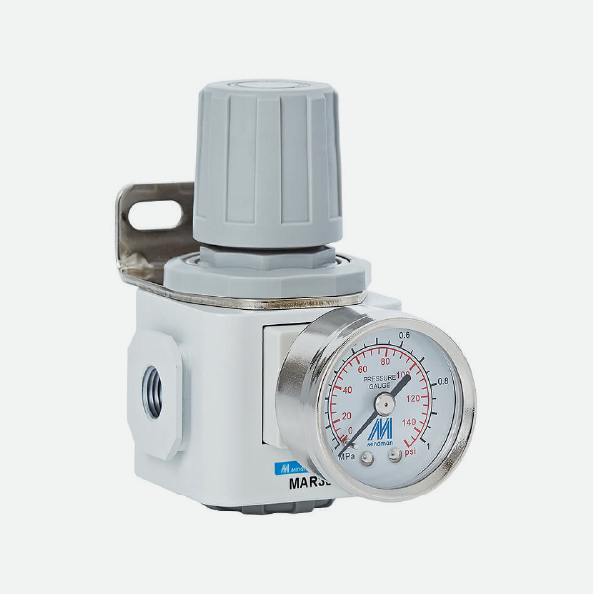

MAR series
Port size: 1/4", 3/8", 1/2", 3/4", 1"
Max. Operating pressure: 1 MPa.
Set pressure range: 0.05~0.85 MPa.

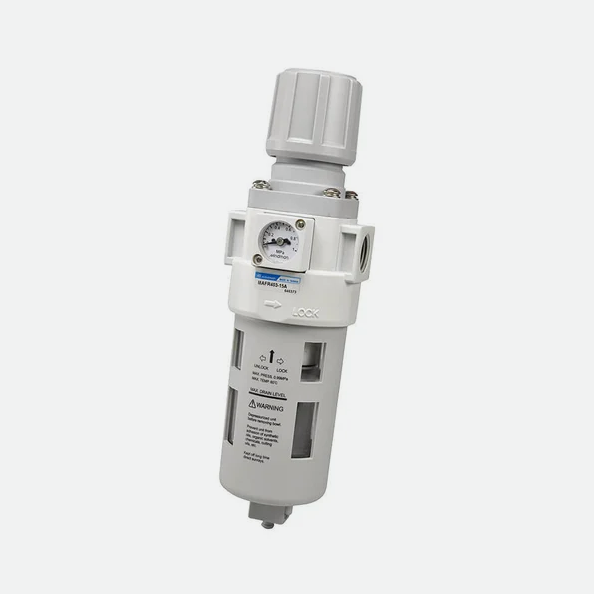

MAFR series
Port size: 1/4", 3/8", 1/2", 3/4", 1"
Max. stroke: 0.05~0.85 MPa.
SOLENOID VALVE

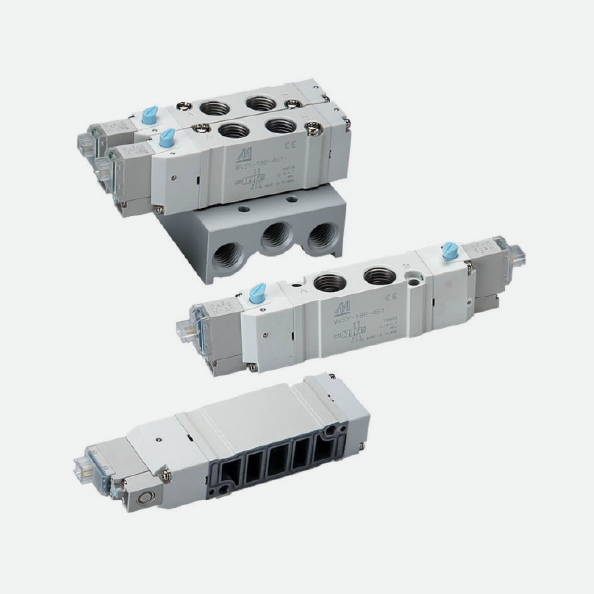

MVSP series
Body width : 15 mm, Port size: Rc1/8, Operating pressure range : 0.15~0.8 MPa. Proof pressure : 1 MPa, Flow : 381~762 l/min.

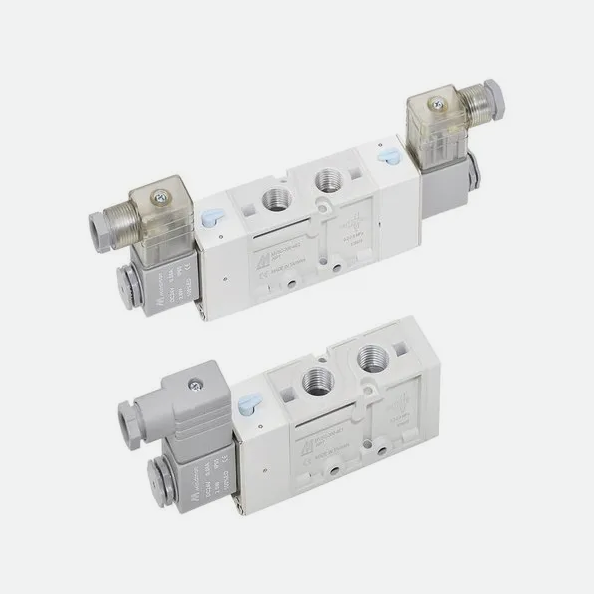

MVSC series
Bore No. 8A, Port size: Rc1/8, Rc1/4, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.

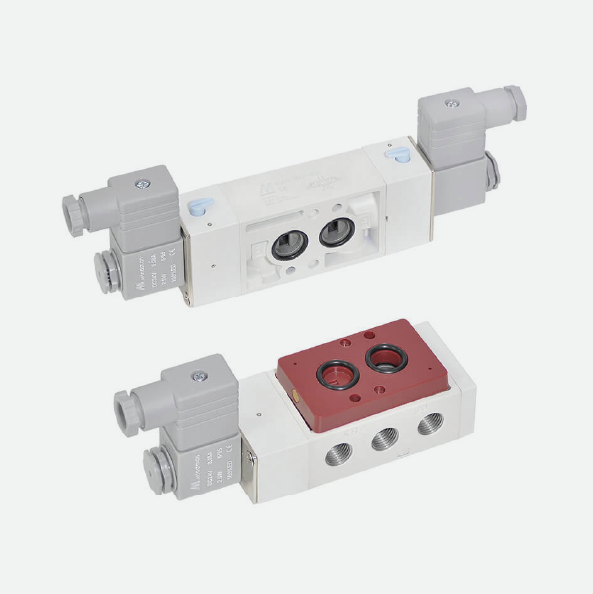

MVSN series
Body width: 22 mm, Port size: G1/8, G1/4, Operating pressure range: 0.2~0.8 MPa, Proof pressure:1 MPa, Flow: 980 l/min.
HAND LEVER VALVE

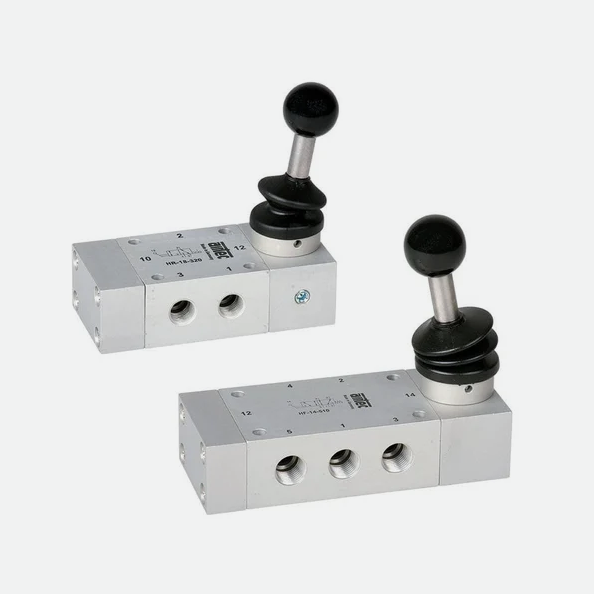

MVHB series (Hand lever Valve)
MVHB-200
Port size: Rc1/4
Operating pressure range: 0~0.8 MPa.
Ambient temperature: -5~+60C

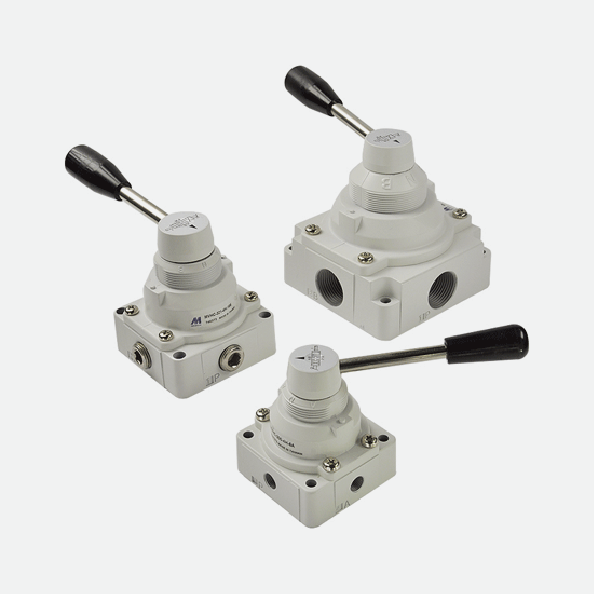

MVHC series (Rotary Hand Leaver valve)
Port size: Rc1/4, Rc1/8, Rc1/2, Rc3/8, Rc3/4
Operating pressure range: 0.05~1 MPa.
Ambient temperature: -5~+60C

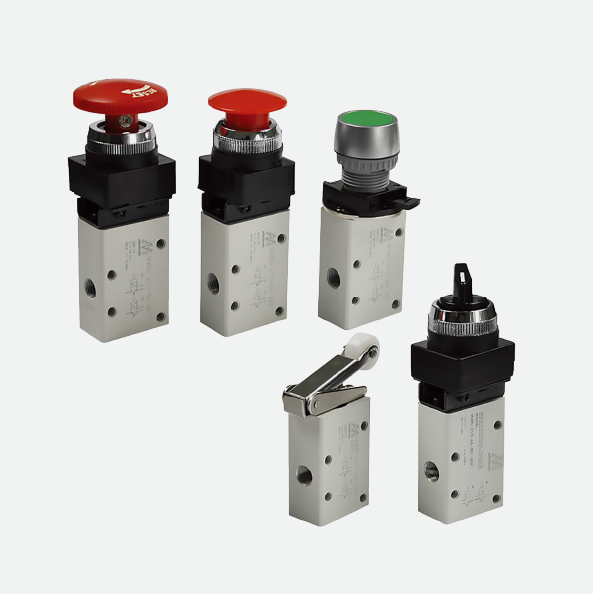

MVMB series (Mechanical Valve)
MVMB-220-3
Port size: Rc1/4
Operating pressure range: 0.15~0.8 MPa.

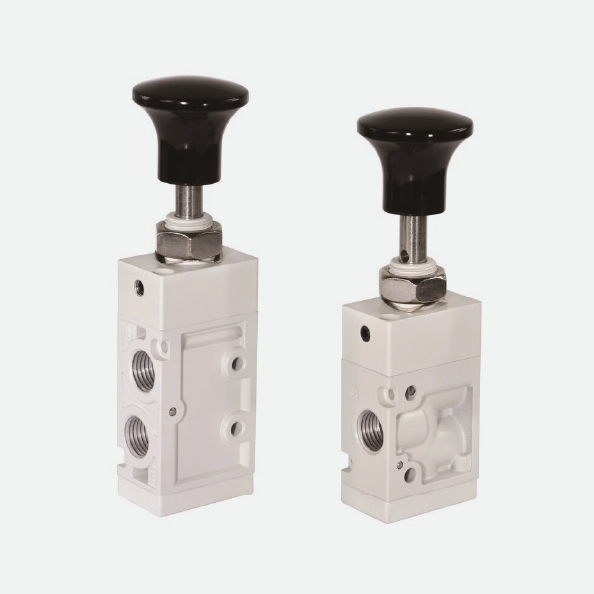

MVHD series (Hand Valve)
MVHD-220
Port size: Rc1/4, Rc1/8
Operating pressure range: 0~0.8 MPa.

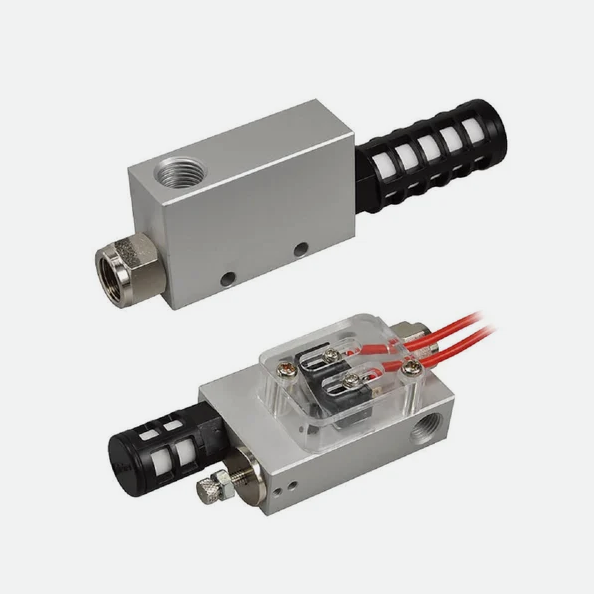

MVVA series (Vacuum Generator)
Port size: 1/8, 1/4, 3/8
Final Vacuum: -91.8 kPa.
PNEUMATIC CYLINDER

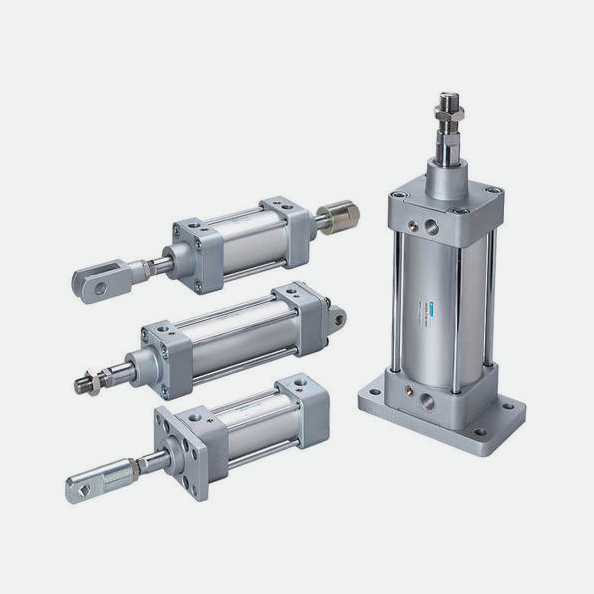

MCQV2 series
Bore size: θ32, 40, 50, 63, 80,
100 (mm)
ISO 6431
VDMA 24562

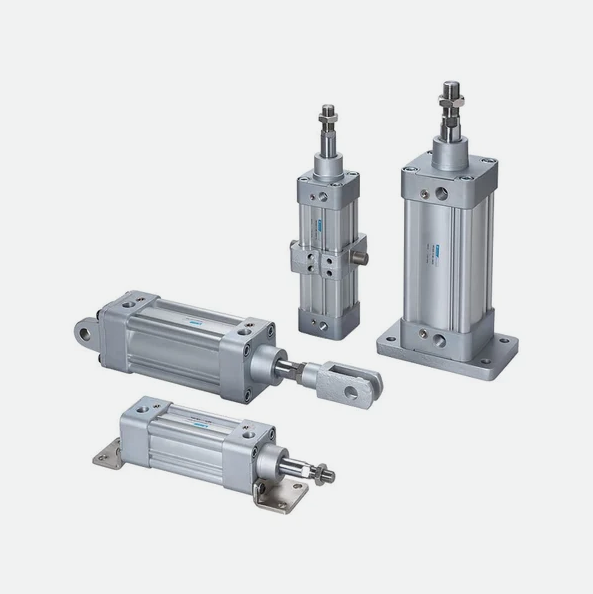

MCQI2 series
Bore size: θ32, 40, 50, 63, 80,
100 (mm)
ISO 6431
VDMA 24562

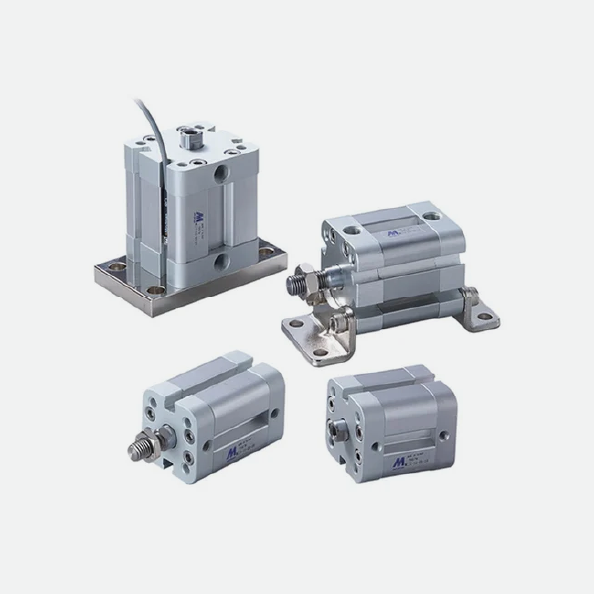

MCJI series
Bore size: θ20, 25, 32, 40, 50, 63,
80, 100 (mm)
Max. stroke: 500(mm)
ISO 21287

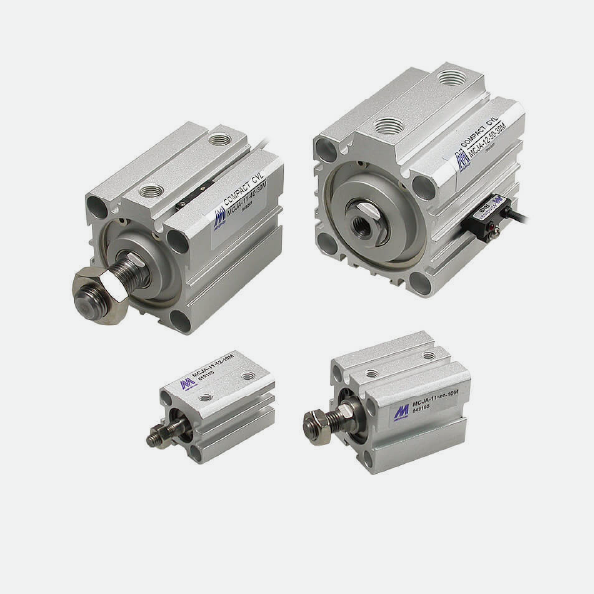

MCJA series
Bore size: θ12, 16, 20, 25, 32, 40,
50, 63, 80, 100 (mm)
Max. Stroke: 300mm

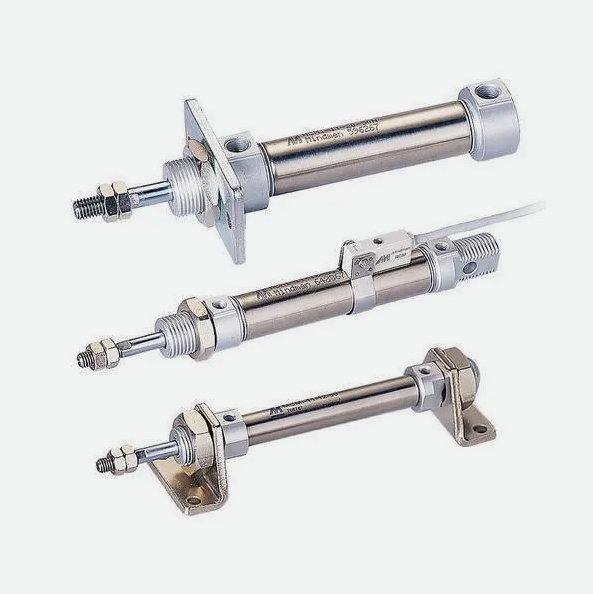

MCMI series
Bore size: θ8, 10, 12, 16, 20, 25,
32, 40 (mm)
Max. Stroke: 500mm

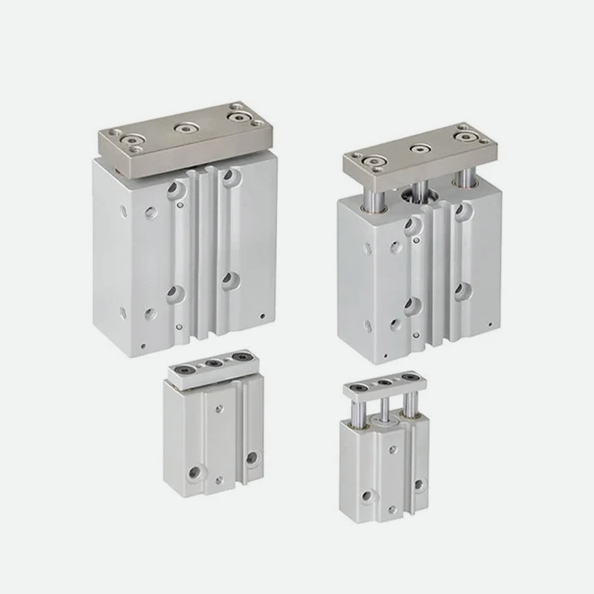

MCGS series
Bore size: θ6, 10, 12,
16, 20, 25, 32, 40, 50, 63 (mm)
Max. Stroke: 400mm
SPECIAL PRODUCTS

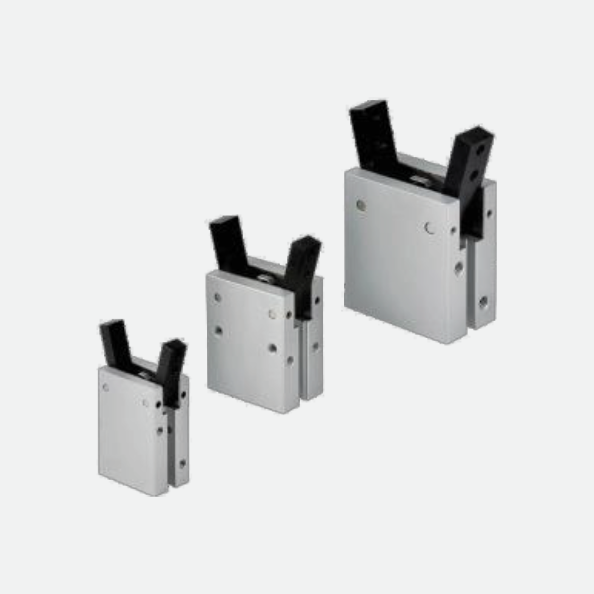

MCHA series
Double acting / single acting (N.O.)
θ12, 16, 20, 25, 32(mm)
Max, holding force: 110 (N)
Clamp/ Release angle: -10 ~ +30°

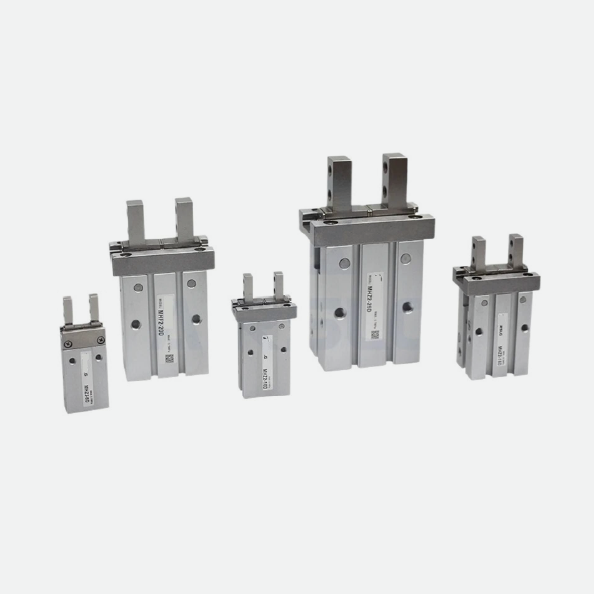

MCHC series
Tube I.D. θ6, 10, 16, 20, 25 (mm)
Two-jaw pareller gripper
stainless steel gripper set Madnetic as standard

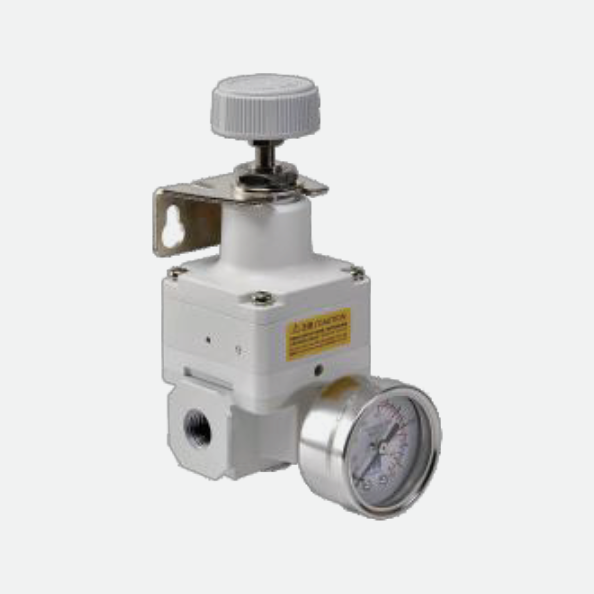

MARI series
Port size: 1/8~1/2
Sensitivity +0.2% F.S
Repeatability: +0.5% F.S
Set pressure range: 0.005~0.8 MPa
Max.op pressure: 1 MPa

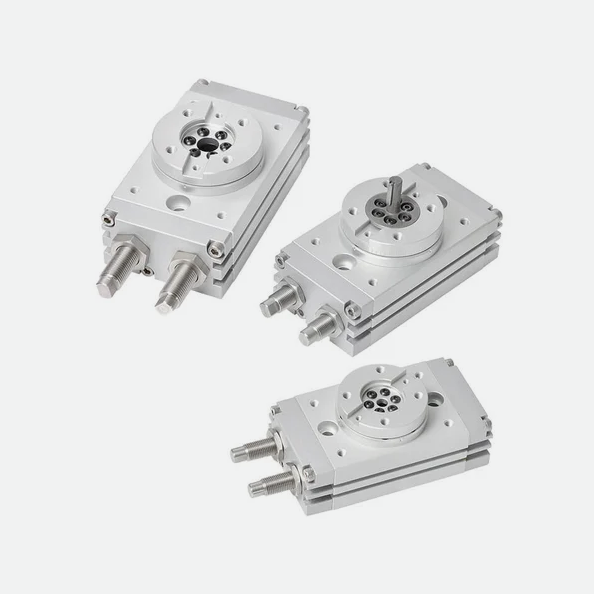

MCRB series
Bore size: θ6, 20, 25, 32 (mm)
Dual piston design with rack & pinion structure three mounting direction
